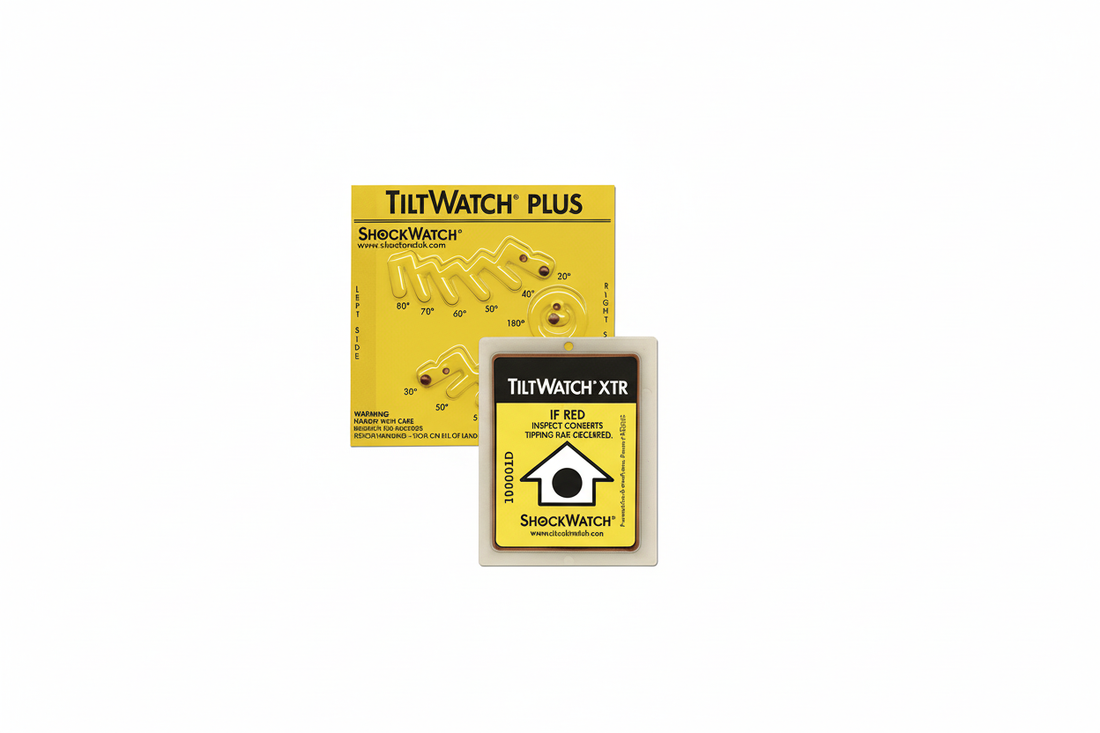

TiltWatch XTR vs TiltWatch Plus – Which Tilt Indicator Should You Use?
This article is part of our SpotSee® Knowledge Base.
TiltWatch XTR vs TiltWatch Plus – Which Tilt Indicator Should You Use?
Tilt indicators help prevent damage by showing when a shipment has been tilted or laid on its side. SpotSee make two main options — TiltWatch XTR and TiltWatch Plus — and while they look similar, they answer different questions.
This guide explains the differences in plain language so you can choose the right tilt indicator for your shipment. As a SpotSee partner, Good Life Innovations helps businesses across the UK select the correct tilt monitoring solution for their packaging and logistics workflows.
What both indicators have in common
- Detect tilt and orientation changes
- Clear, irreversible activation — they cannot be reset
- Single-use and tamperproof
- Mount on the outside of the packaging
- Armed by removing the adhesive backing, so arming and applying are one action
- Carry a serialised barcode
The difference is how much detail you want about the tilt event.
TiltWatch XTR – simple “was it tilted?” monitoring
TiltWatch XTR activates when a shipment is tilted past 80° (80° ±5° from vertical). It gives a simple pass or fail: the product was either kept upright or it was not. It monitors a single plane and does not show the direction or the degree of tilt.
Best for: appliances, machinery, and products that must remain upright but are not sensitive to smaller tilt angles.
- One activation point, greater than 80°
- Clear, irreversible red indication
- Steel disc mechanism in a rigid polystyrene housing
- Operating temperature −40°C to +60°C; humidity 5% to 99% non-condensing
- Ideal for general upright monitoring
TiltWatch XTR QR is the same device with a QR code added, so the recipient can scan it on arrival with any smartphone camera to check its condition. Each unit also carries a serial number printed on the face.
TiltWatch Plus – “how far, and which way?” monitoring
TiltWatch Plus is a different device, using glass balls rather than a steel disc. It shows whether there was a tilt to the left or the right, the degree of the tilt, and whether a complete overturn has occurred. Its activation angles start at 30° and rise in 10° increments to 90°.
Best for: precision equipment, liquid-filled systems, and products where even moderate tilt can cause damage.
- Shows the degree of tilt, not just that it happened
- Indicates tilt direction, left or right
- Includes an inversion indicator for complete overturn
- Supplied with a companion label
- Ideal for sensitive or calibration-critical products
Side-by-side comparison
| Feature | TiltWatch XTR | TiltWatch Plus |
|---|---|---|
| Activation angle | Greater than 80° | 30°, in 10° increments to 90° |
| Indicates degree of tilt | No | Yes |
| Indicates tilt direction | No | Yes |
| Inversion indicator | No | Yes |
| Sensor type | Steel disc, non-metallic | Glass balls |
| Arming method | Remove adhesive backing | Remove adhesive backing |
| QR version available | Yes — TiltWatch XTR QR | No |
| Best for | General upright monitoring | Sensitive or precision equipment |
Which one should you choose?
- Choose TiltWatch XTR if you only need to know whether the product was tipped beyond a safe limit — or TiltWatch XTR QR if you also want the recipient to be able to scan and check the indicator on arrival.
- Choose TiltWatch Plus if you need to know how far it tilted, in which direction, and whether it was overturned.
Need help choosing?
Good Life Innovations, as a SpotSee partner, can help you select the right tilt indicator based on your product, packaging and handling risks. Browse our tilt and tip indicators, including TiltWatch XTR QR and the standard TiltWatch XTR.
