TiltWatch XTR – When to Use the Single‑Axis Tilt Indicator
This article is part of our SpotSee® Knowledge Base.
TiltWatch XTR – When to Use the Single-Axis Tilt Indicator
The TiltWatch® XTR is SpotSee's most widely used single-axis tilt indicator. It provides a clear, irreversible visual alert when a shipment has been tilted past 80°, helping prevent damage to products that must remain upright during transport and handling.
Unlike impact indicators such as ShockWatch Labels or Clips, the TiltWatch XTR does not detect drops or shocks. Instead, it monitors tilt and orientation, making it ideal for goods that must stay vertical at all times.
As a SpotSee partner, Good Life Innovations helps businesses choose the right tilt indicators and integrate them into their packaging and logistics processes.

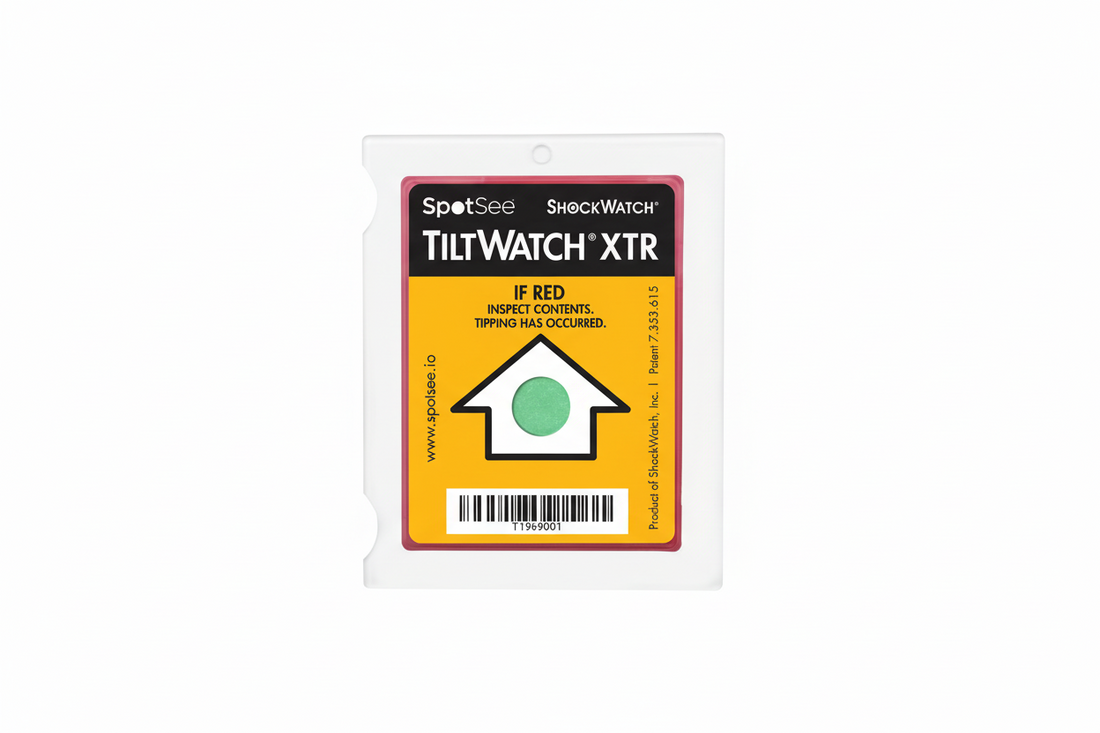

What Is the TiltWatch XTR?
The TiltWatch XTR is a single-use, tamperproof tilt indicator that activates when the monitored item is tilted beyond 80°. Once activated, the indicator window turns red and cannot be reset, providing clear evidence of improper handling.
It is commonly used on products that can be damaged, compromised, or made unsafe if stored or transported on their side.
How the TiltWatch XTR Works
The device contains a sealed internal mechanism that responds to changes in orientation. When the shipment is tilted past the activation angle:
- The indicator window turns red
- The activation is permanent and cannot be reversed
- The device shows that the product was not kept upright
This makes it easy to identify when mishandling occurred during transport, loading, unloading, or storage.
When to Use the TiltWatch XTR
The TiltWatch XTR is ideal for products that must remain upright to avoid damage, leakage, misalignment, or safety risks. Typical applications include:
1. Appliances and white goods
- Refrigerators
- Freezers
- Washing machines
- Dishwashers
2. Industrial and mechanical equipment
- Pumps and compressors
- Motors
- HVAC units
3. Medical and laboratory equipment
- Imaging devices
- Optical systems
- Calibration-sensitive instruments
4. Products containing liquids
Many liquid-filled systems can be damaged or contaminated if tilted.
5. Tall or top-heavy items
These are at risk of tipping, internal shifting, or structural stress.
TiltWatch XTR vs Impact Indicators
Customers often confuse tilt indicators with impact indicators, but they serve different purposes:
| Feature | TiltWatch XTR | ShockWatch Labels / ShockWatch 2 |
|---|---|---|
| Detects Tilt? | Yes | No |
| Detects Impact? | No | Yes |
| Best For | Products that must stay upright | Products sensitive to drops or shocks |
| Activation | Tilting past 80° | Exceeding a G-level |
When TiltWatch XTR Is Not Enough
Some products require both tilt and impact monitoring. In these cases, TiltWatch XTR is often paired with:
- ShockWatch Labels – for carton-level impact monitoring
- ShockWatch 2 – for field-armable impact detection
- ShockWatch Clip – for on-product impact monitoring
Installation Best Practices
To ensure accurate performance:
- Apply the indicator to a clean, flat surface
- Use the companion label to provide clear handling instructions
- Place the indicator high on the product for maximum visibility
- Ensure the product is upright before arming the device
Benefits of Using the TiltWatch XTR
- Clear, irreversible evidence of tilt
- Prevents improper handling
- Reduces damage to upright-sensitive products
- Supports warranty and insurance claims
- Easy to apply and highly visible
Is the TiltWatch XTR Right for Your Application?
Choose the TiltWatch XTR if your product must remain upright during shipping, storage, or installation. It provides simple, reliable tilt monitoring that helps prevent damage and improves accountability throughout the supply chain.
For more detailed tilt monitoring showing degrees of tilt, consider TiltWatch Plus, which provides multi-stage tilt detection at 30°, 60°, and 80°+. For automated tilt detection with RFID technology, explore TiltWatch RFID.
Good Life Innovations, as a SpotSee partner, can help you select the right tilt indicators and integrate them into your packaging and logistics workflow.
